Use PowerShell to connect to the PeerGFS API


Applies to PeerGFS v4.6.0.20210402 and later.

Initializing the Toolkit

  1. Open Peer Management Center.

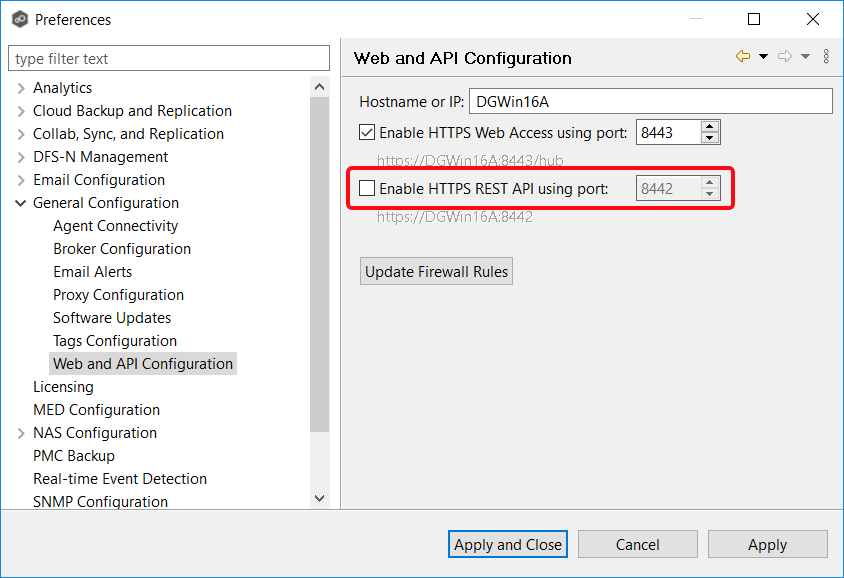

  2. Open Preferences, select General Configuration, and then select Web and API Configuration

  3. Enable the Enable HTTPS REST API using port: 8442 option.
    Web and API Configuration.png

  4. Click Apply and Close.

  5. Launch PowerShell and navigate to <PMC Installation Directory>\tools\powershell on the PMC server.

  6. Run .\ConfigurePeerGFSToolkit.ps1 from the PowerShell console.

  7. Start using the API.  See command examples below.

Example Commands

PowerShell
# List all Agents
$agents = Get-PeerGFSAgents
$agents.Agents | fl

# List all Jobs
$jobList = Get-PeerGFSJobs
$jobList.jobs | fl

# List all open files
$openFiles = Get-PeerGFSOpenFiles
$openFiles.openFiles | ft

# List all quarantines
$quarantines = Get-PeerGFSConflicts -FileConflictTypes QUARANTINED
$quarantines.FileConflicts | ft

# List watch set statistics
$watchSetStats = Get-PeerGFSWatchSetStats
$watchSetStats.watchSetStats | ft

# List active open and pending replication stats
$activeStats = Get-PeerGFSActiveStats
$activeStats.activeStats | ft

# List queue stats
$queueStats = Get-PeerGFSQueueStats
$queueStats.fileQueueStats | ft

# List stats about replication work that is already complete
$replStats = Get-PeerGFSReplicationStats
$replStats.replicationStats | ft

# List scan status and stats
$scanStatus = Get-PeerGFSScanStatus
$scanStatus.fileScanStatuses | ft

# List fatal job alerts
$fatalJobAlerts = Get-PeerGFSFileJobAlerts -Severities FATAL
$fatalJobAlerts.alerts | ft

# List fatal PMC alerts
$fatalPmcAlerts = Get-PeerGFSPmcAlerts -Severities FATAL
$fatalPmcAlerts.alerts | ft

# List scheduled task history
$scheduledTasks = Get-PeerGFSScheduledTasks
$scheduledTasks.scheduledTasks | ft
