Dell PowerStore Configuration Guide

Overview

This guide steps you through configuring your environment to work with a Dell storage platform in preparation for installing Peer Software solutions. The last section of this guide provides troubleshooting information. The components covered in this guide may be installed on the same server as Peer Software components (like the Peer Agent) or they may be installed on a dedicated server.

The software you will be installing and configuring includes:

• Dell CEE (Common Event Enabler) framework – Required to receive real-time notifications from specific Dell storage platforms.

Requirements

• Your Dell PowerStore storage device must be running PowerStoreOS v4.1 or later.

• If you are installing the CEE on Red Hat, it requires Red Hat Enterprise Linux v9.x or later. CEE does not support Rocky Linux.

• Local administrator rights are required for most of the installation and configuration tasks.

• See Dell PowerStore Prerequisites for other requirements.

Terminology

• CEE server – A Windows or Red Hat server hosting CEE framework and optionally, your Peer Software solutions.

• Common AntiVirus Agent (CAVA) – A software service that provides anti-virus services for Dell storage platforms.

• Common Event Enabler (CEE) framework – A Dell software product required to obtain real-time event notifications from a PowerStore storage device.  Used to be called Celerra Event Enabler.

• Common Event Publishing Agent (CEPA) – A software service that provides event publishing services for Dell storage platforms.

• PowerStore – All-flash unified storage platform.

• Multi-Protocol – Multi-protocol allows workloads where some clients use SMB and others use NFS to access the same data set on the same storage system. This enables mixed environments (e.g., Windows and Linux) to access and modify common files without maintaining separate copies.

• NAS Server – A Dell PowerStore storage server that uses the SMB and/or NFS protocols to catalog, organize, and transfer files within designated file systems.

• NFS – The Network File System (NFS) protocol is a network file-sharing protocol typically used by Linux-based clients. Common versions include v3 and v4.

• SMB/CIFS – The Server Message Block (SMB) Protocol is a network file-sharing protocol; it supersedes Common Internet File System (CIFS), an earlier protocol. SMB is used in this document to refer to both protocols. SMB is widely used in Windows environments, but it is supported across multiple operating systems.

Configuration Tasks

Task 1. Confirming Configuration Readiness

1. Ensure that the Dell PowerStore prerequisites are met for the Peer Software solution you will be using.

2. If your storage platform (e.g., PowerStore and Unity) requires licensing for the Common Event Enabler (CEE) framework, ensure that CEE is licensed.

3. Ensure that the PowerStore storage device is already configured to serve data via SMB and optionally, NFS.  SMB is required for event publishing with CEE. You should be able to access an SMB share and optional NFS export from a client BEFORE attempting to continue.

4. Ensure that the date and time on the PowerStore storage device are synchronized with any associated domains, as well as the servers hosting the Peer Software solution and the CEE.

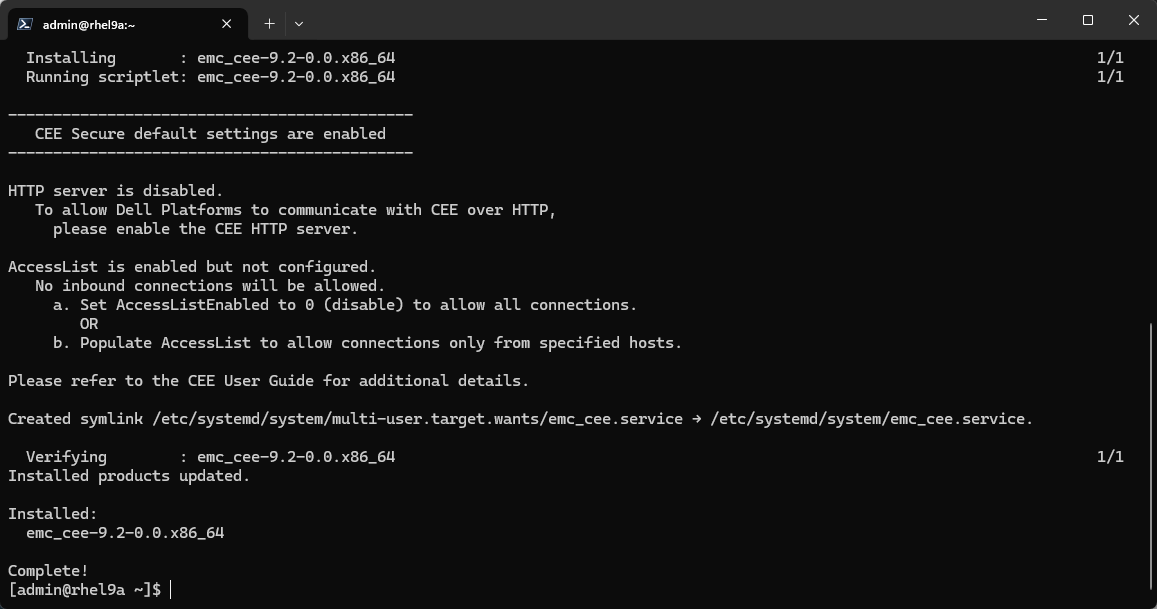

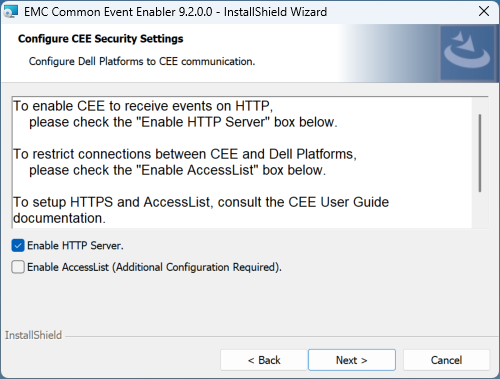

Task 2. Installing the Common Event Enabler

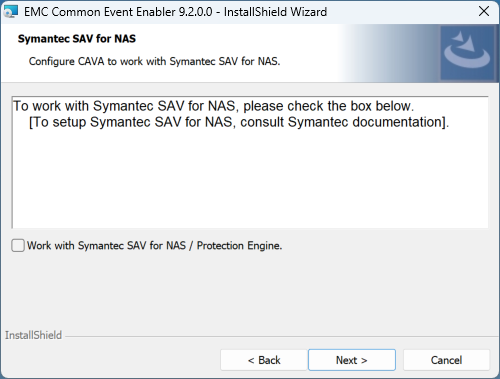

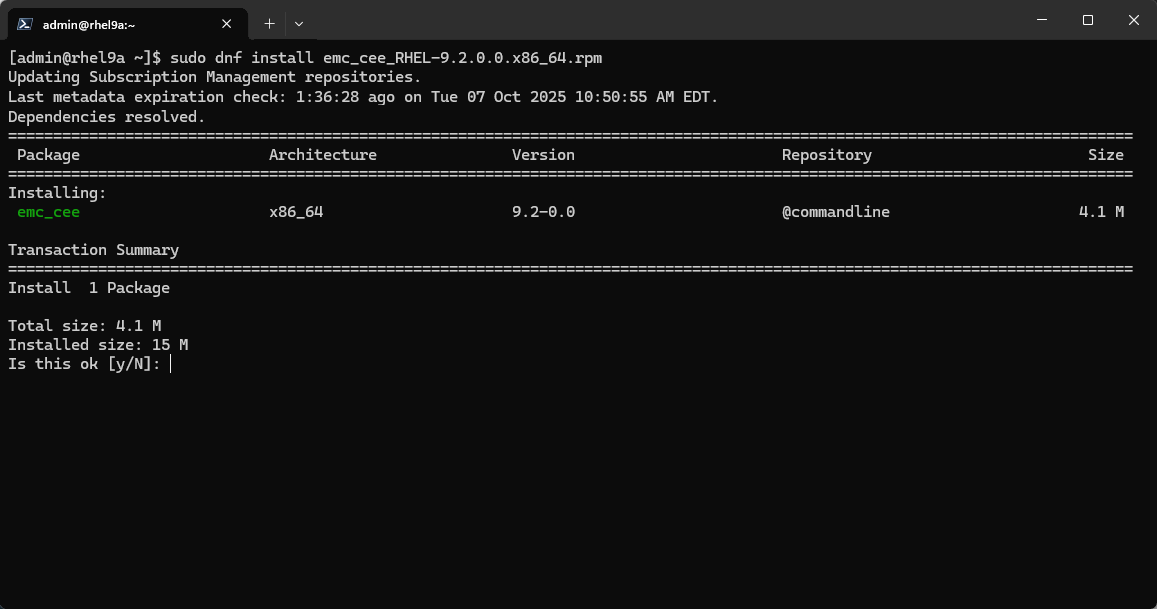

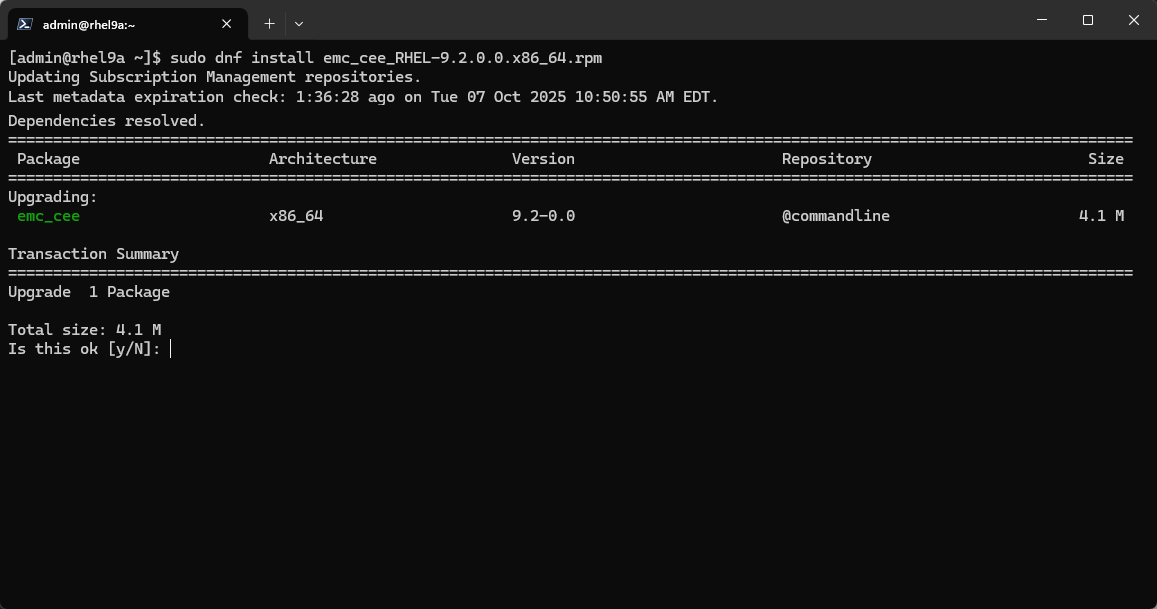

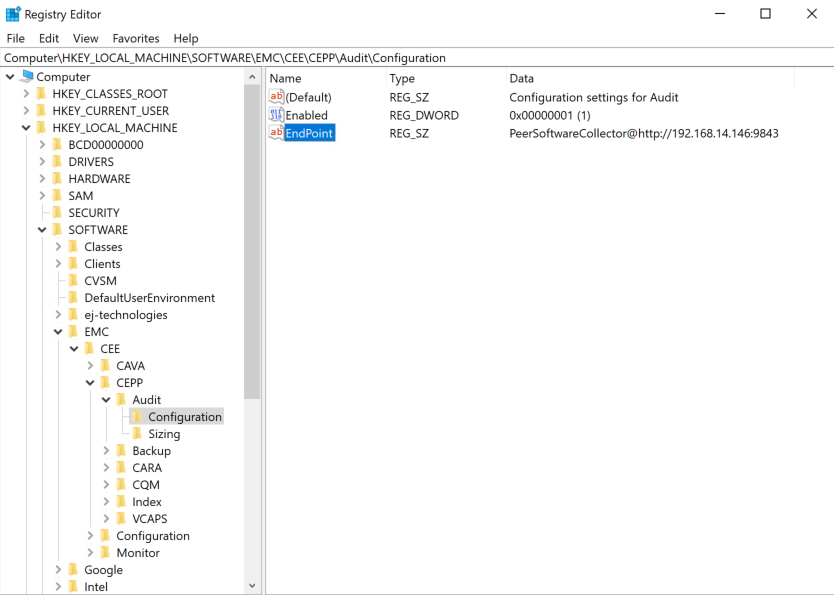

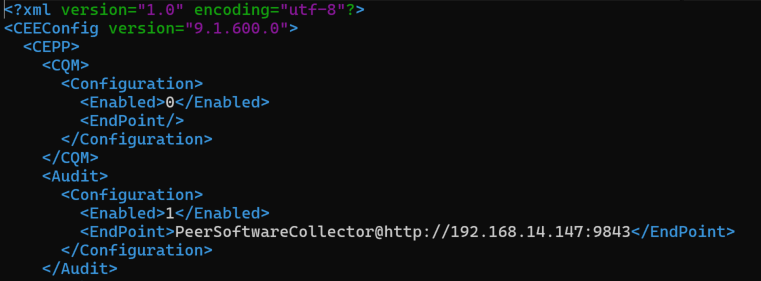

Task 3. Configuring the Common Event Enabler

Task 4. Configuring the PowerStore Storage Device

The event publishing system on the Dell PowerStore storage device is responsible for sending event and client activity notifications to the Common Event Enabler (CEE), which then sends notifications to Peer Software solutions.  You can configure the event publishing settings on a PowerStore storage device using its web interface.  You must be an admin user of the PowerStore storage device to configure these settings.

1. Open a browser window.

2. Enter the IP address of the PowerStore storage device in the browser's address bar.

3. Enter your user name and password, and then click OK.
   The Dashboard page is displayed.

4. Click on the Storage menu, then NAS Servers.

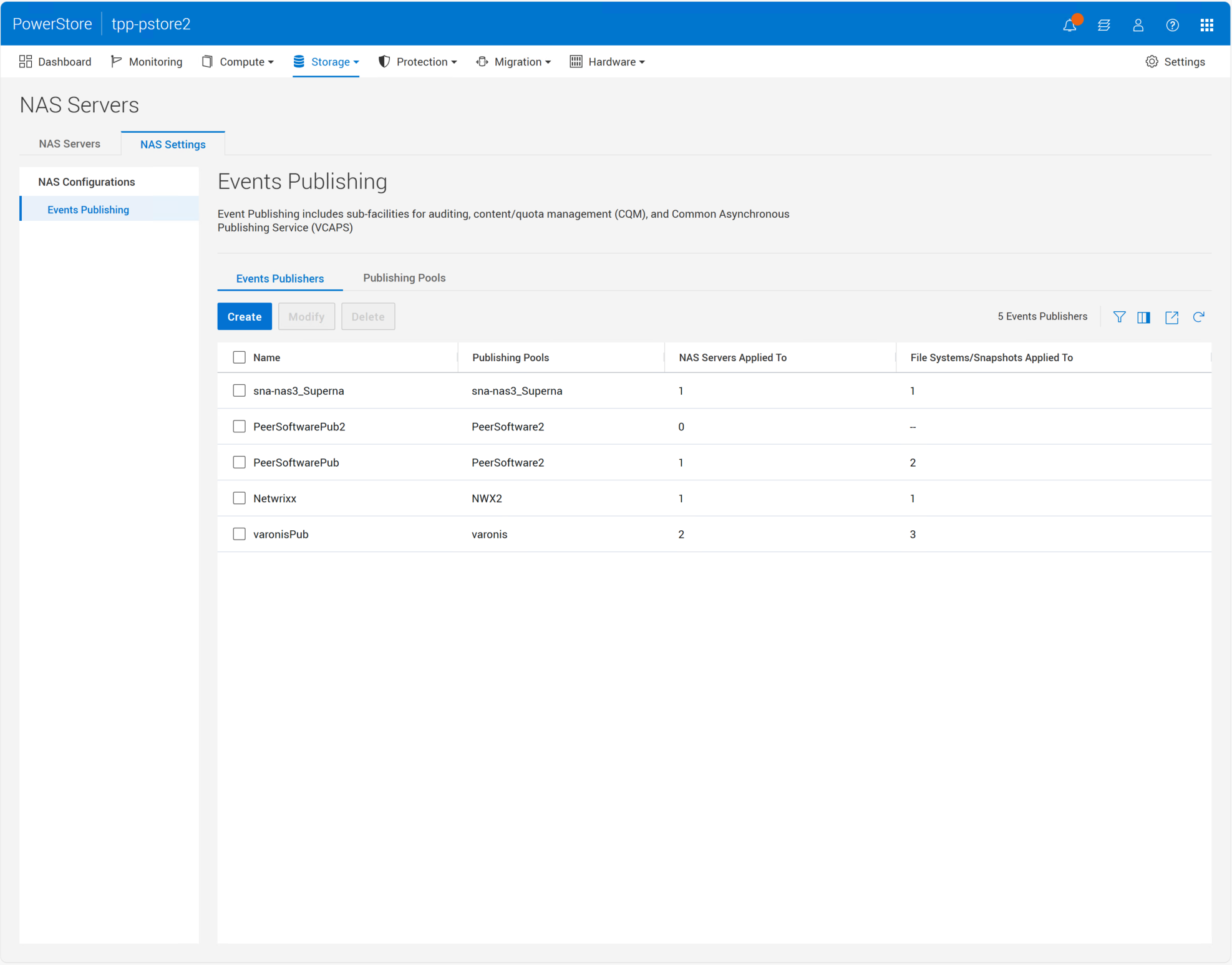

   The NAS Servers page that appears displays a list of the configured NAS Servers.

5. Select the NAS Server which you would like to configure then click on the Security & Events tab.

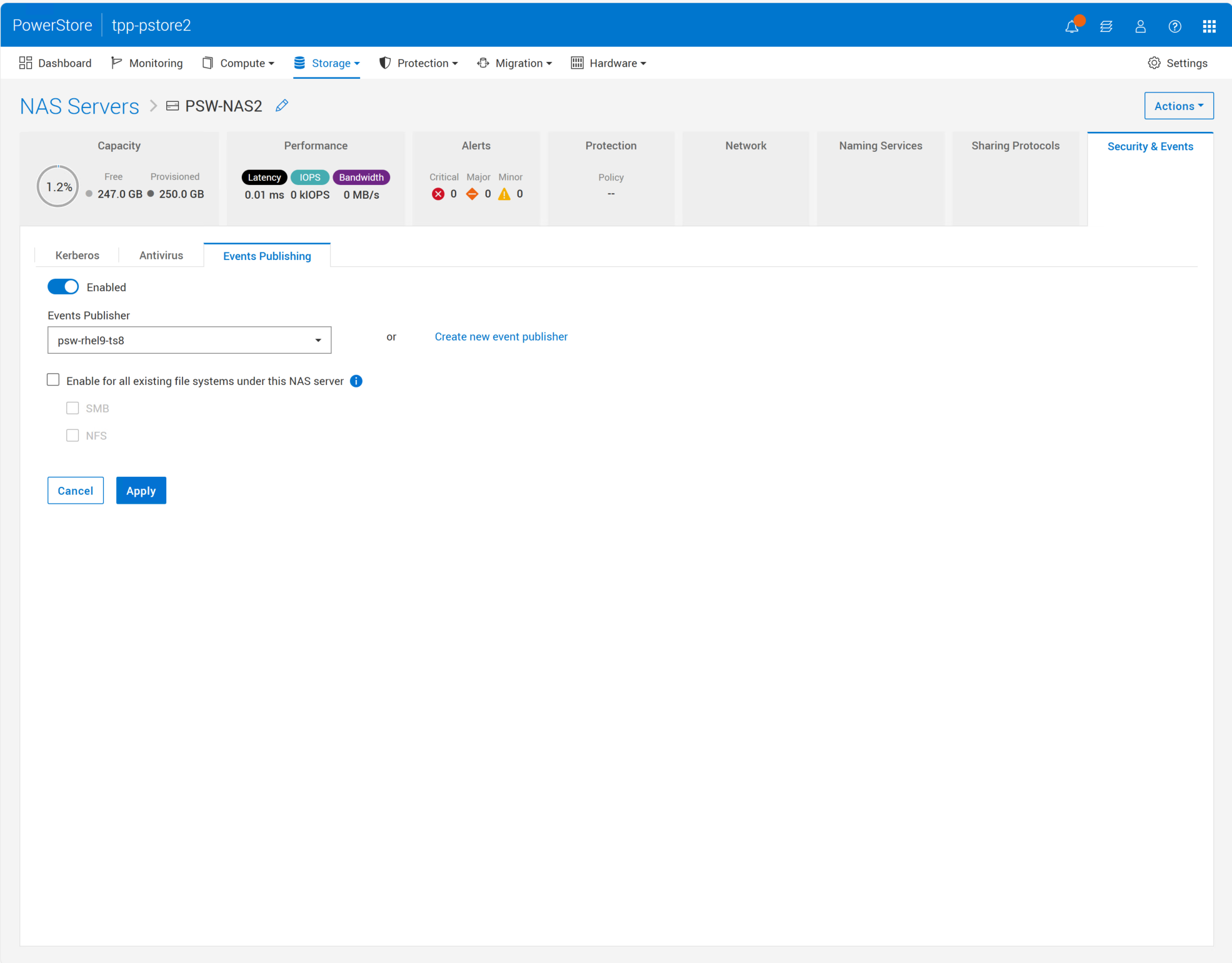

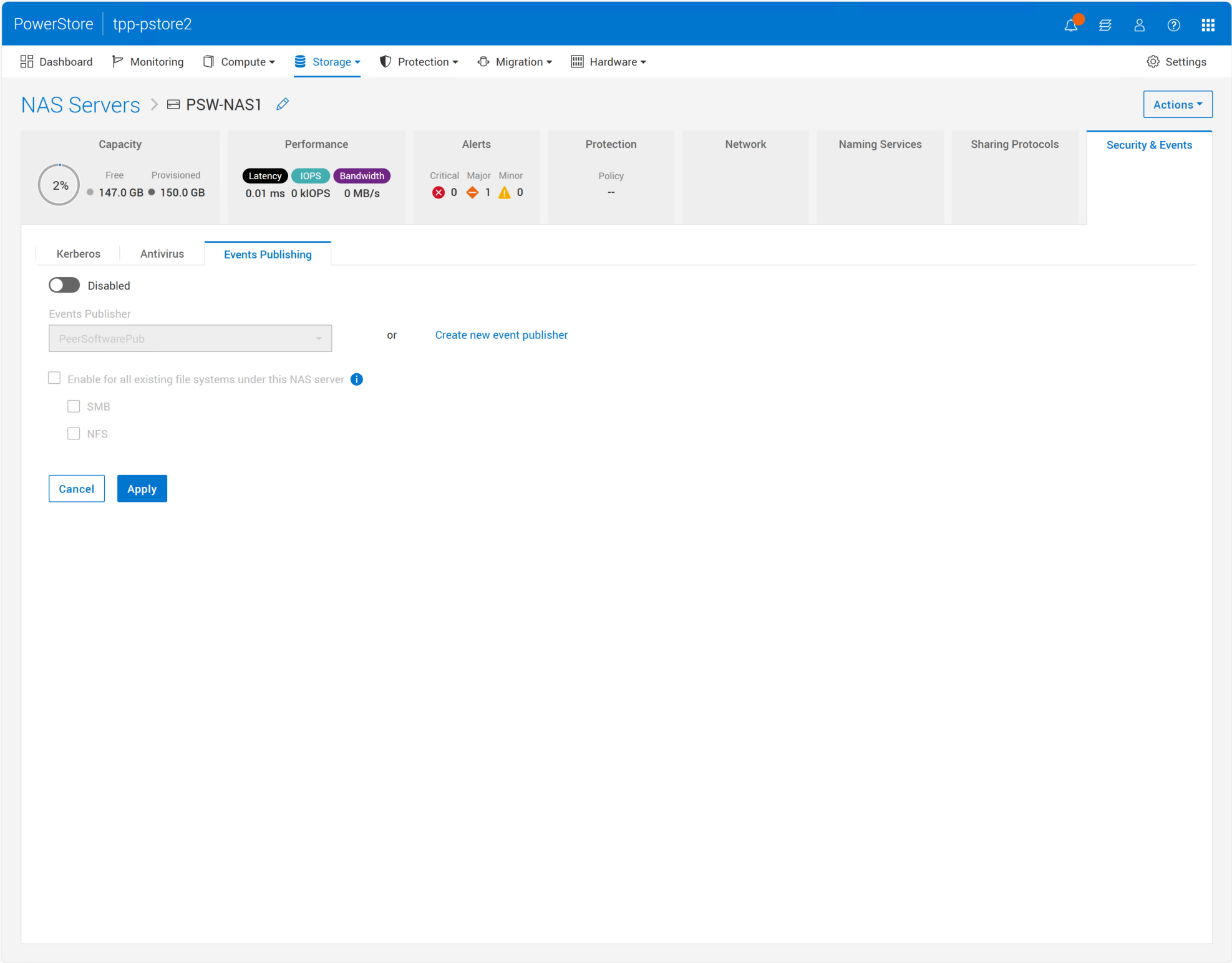

6. Click on the Events Publishing sub-tab and set to Enabled.

7. If you do not have an Events Publisher already assigned to this NAS Server, click Create new event publisher.

   If you already have an Events Publisher that is assigned to this NAS Server (because, for example, you are using software from another vendor that leverages CEE), you will need to add a new Publishing Pool to this Events Publisher.

   To modify an existing Events Publisher, click on the Storage menu, then NAS Servers and select the NAS Settings tab. On the Events Publishing page, select the appropriate Events Publisher and press Modify. Skip to Step # 11 to add a new pool.

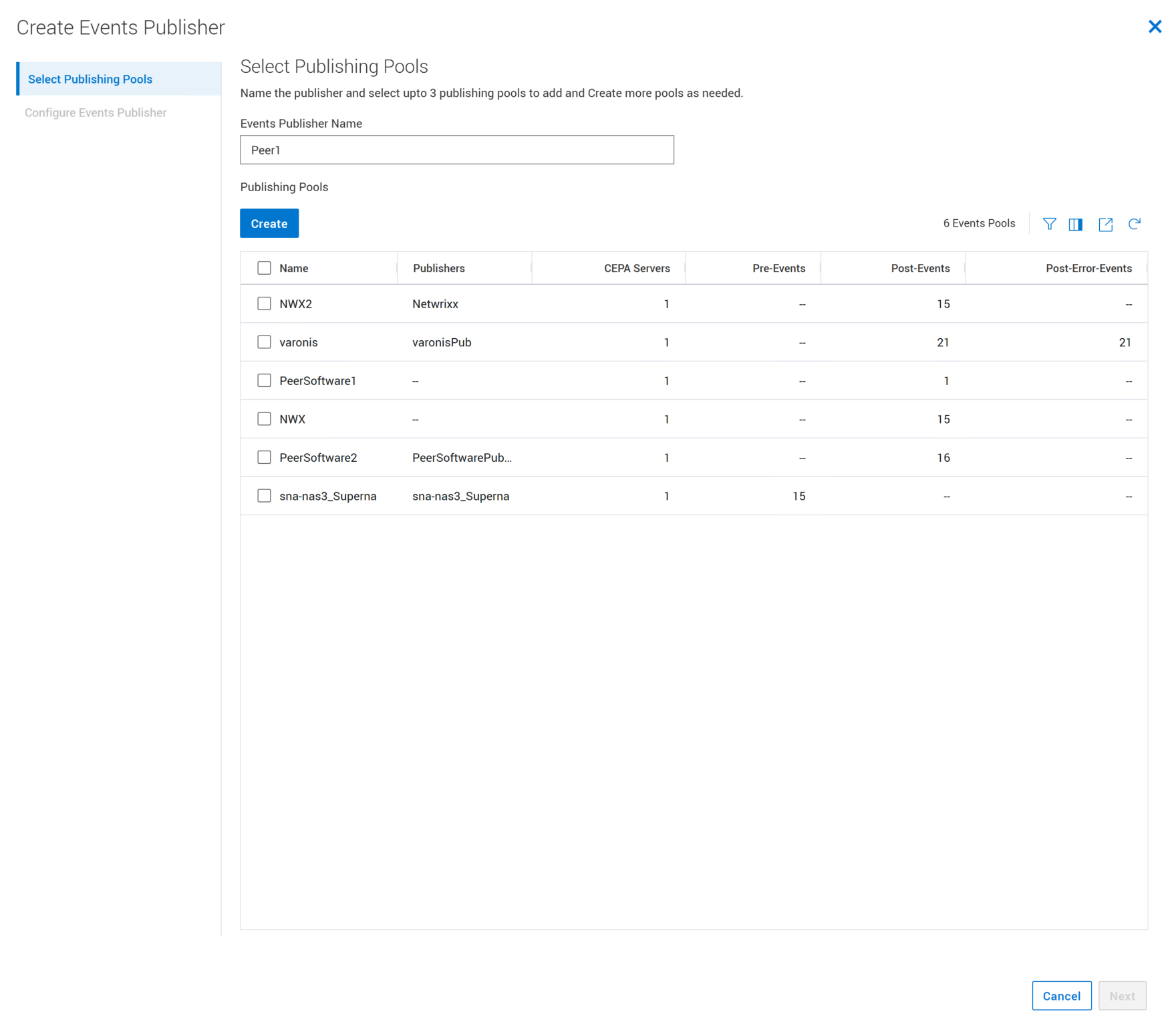

8. If you clicked on Create new event publisher, the following is displayed.



9. Click Create to create an Events Publisher.



10. Give the events publisher a name. Note this name as you will need it when configuring your Peer Software solution.

11. Click Create to create a new publishing pool.

12. Set the Pool Name to an appropriate name.
    Note this name as you will need it when configuring your Peer Software solution.
    You will need to add at least one FQDN or IP address to the Event Publishing (CEPA) Server list.

    1. If you installed the CEE on the same server as the Peer Agent, add a single IP address or FQDN of the Agent server and nothing else. There should be only one entry in the list.

    2. If you are installing the CEE on a separate server(s) from the Peer Agent, add the IP address(es) or FQDN(s) of the appropriate servers.

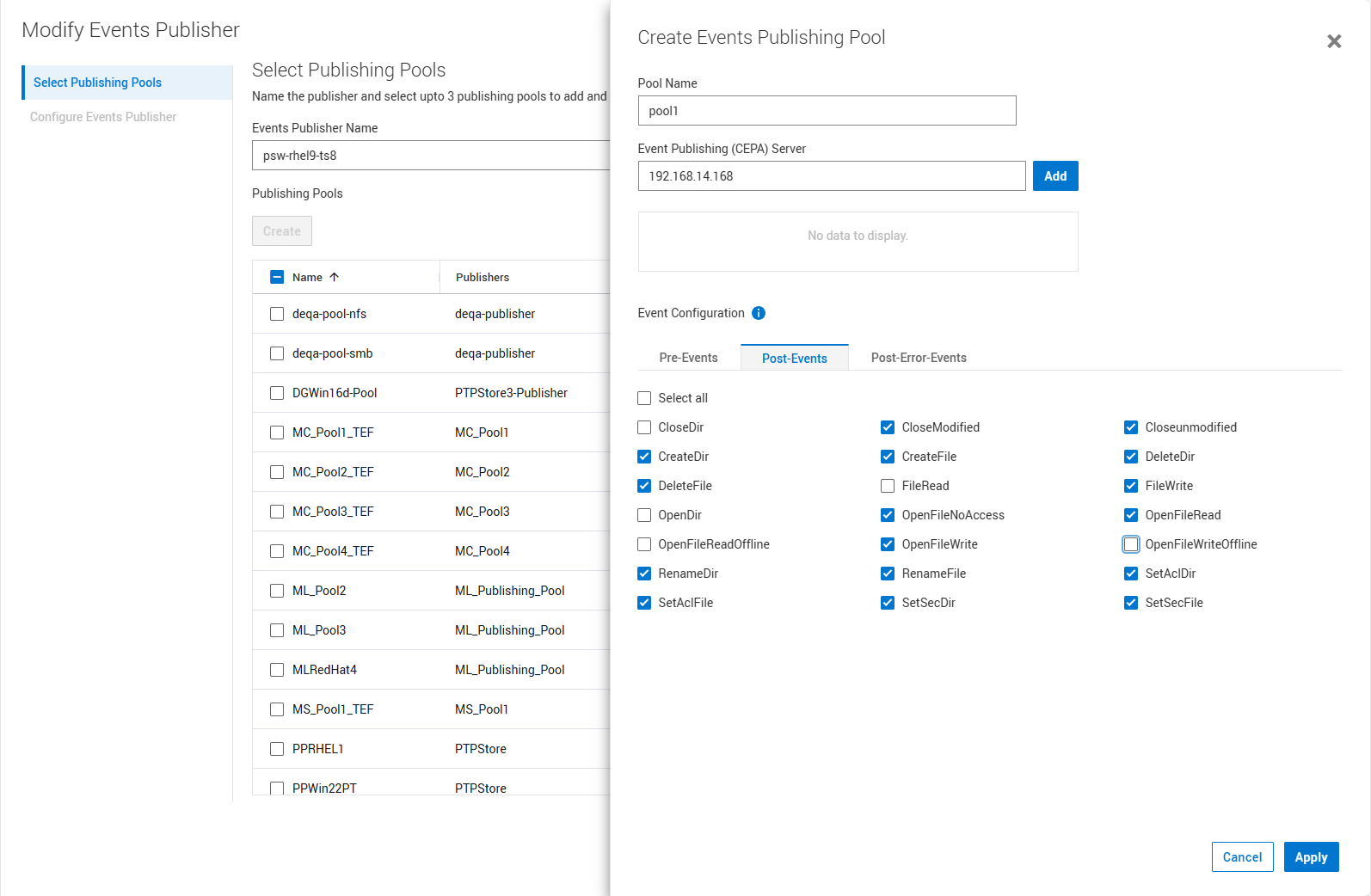

13. Under Event Configuration, select the Post-Events tab, and select the items shown below (check Select all, then uncheck CloseDir, OpenDir, FileRead, OpenFileReadOffline, and OpenFileWriteOffline). The Pre-Events and Post-Error-Events pages should not have anything checked.



14. Click Apply.

15. Check the newly created publishing pool then click Next.

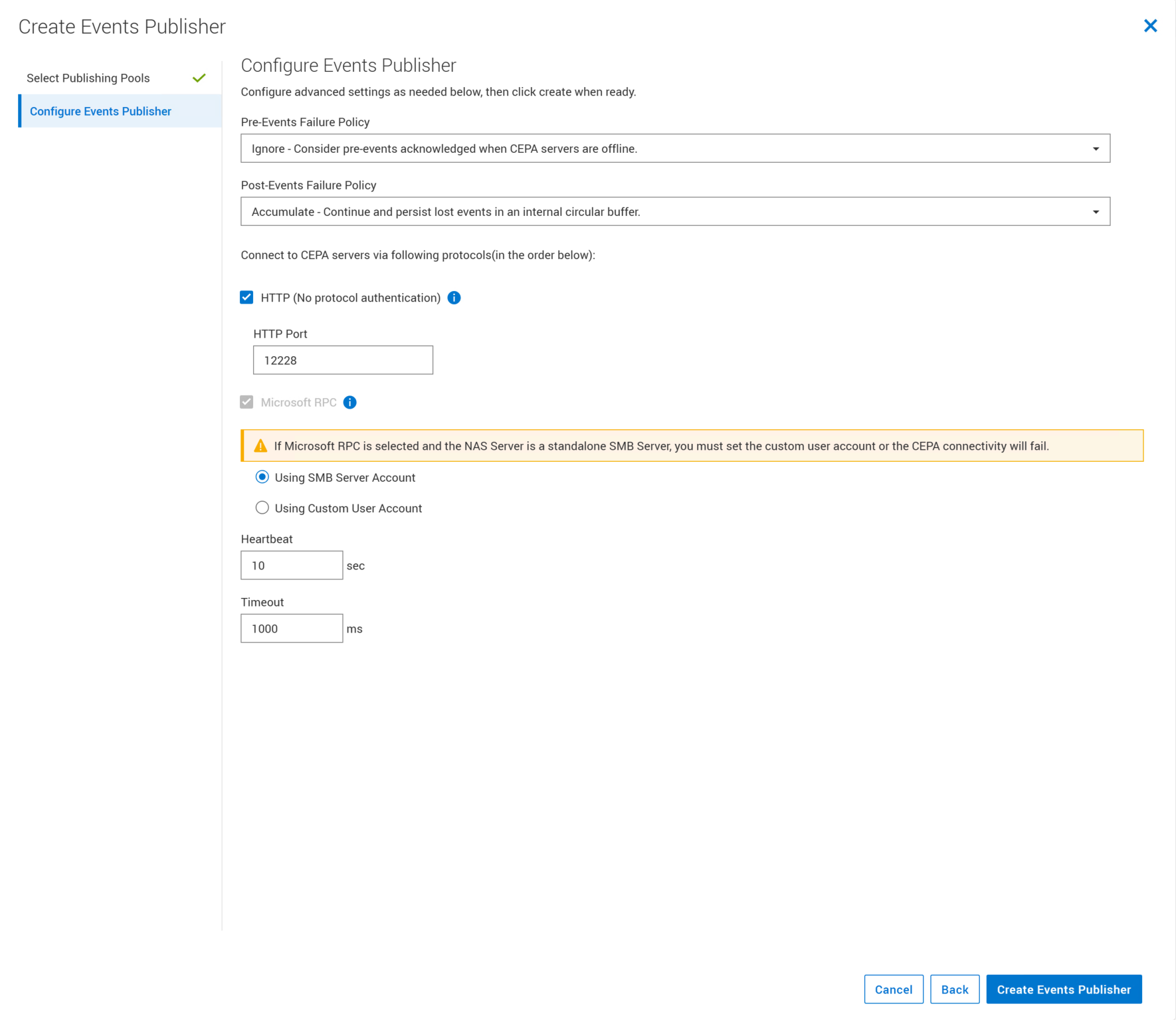

16. On the Configure Events Publisher page, match the settings shown here (defaults).



17. Click Create Events Publisher or Modify Events Publisher, depending on if you are creating a new Events Publisher or are modifying an existing one.

18. Navigate back to the Events Publishing sub-tab from Step #6 above, ensure that it is Enabled, and select the newly created or modified Events Publisher from the list.
    Ensure that Enable for all existing file systems under this NAS server is NOT checked unless you explicitly want to monitor the entire NAS server and not individual file systems.



19. Click Apply.

20. Click on the Storage menu, then File Systems.

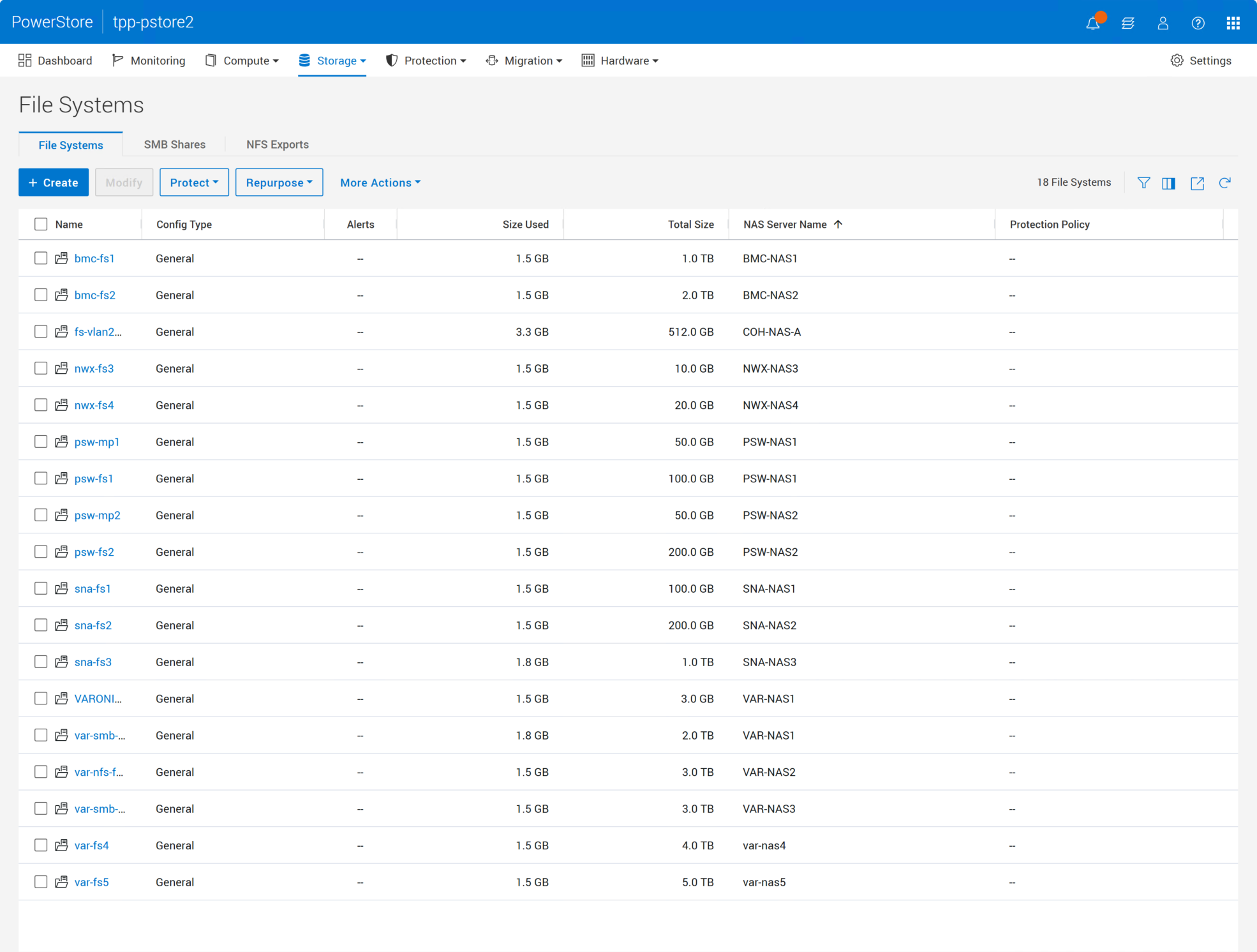

    The File Systems page that appears displays a list of the configured file systems.



21. For each file systems you want to monitor, enable the tracking of end-user activity:

    1. Select the name of the file system.
       The Capacity page appears

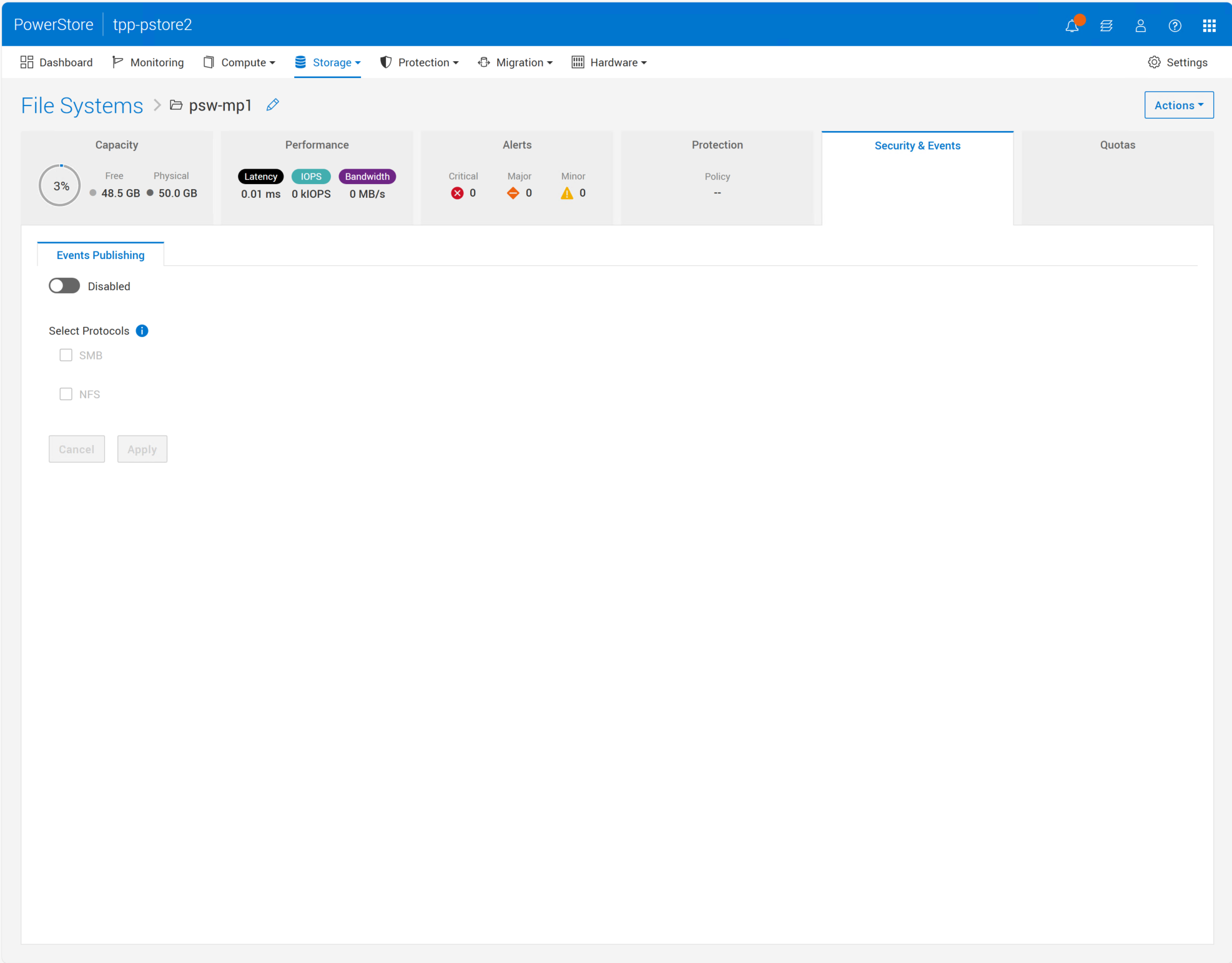

    2. Click the Security & Events tab.



    3. Ensure that Events Publishing is Enabled.

    4. Select the appropriate protocols to monitor. If you are setting up a multi-protocol environment, be sure to check both SMB and NFS.

    5. Click the Apply button.

    6. Repeat Step #21 for each file system you want to monitor.

Task 5. Installing and Configuring the Dell NAS Management Tool

This task is for SMB and multi-protocol workloads only. The Dell NAS Management Tool allows you to set up SMB user filters on the Dell storage device. In the context of Peer Software solutions, these user filters allow the storage device to not track activity generated by Peer Software services. While this activity is automatically ignored by Peer Software services, filtering this activity out on the storage side reduces overhead on both the storage device and the CEE service.

The NAS Management Tool can also be used to grant backup operator-related privileges to Peer Software services in order to avoid being blocked from files and folders for permission reasons.

1. RDP into a Windows server that will run the NAS Management tool. This can be a server hosting the Peer Software solution or the CEE service.

2. Download the Dell NAS Management tool.  You can download the software from Dell's support site (requires a Dell account):
   https://dl.dell.com/downloads/2TNNK_8.1.21.256_VNXFileCifsMgmt.exe.exe

3. Install the NAS Management tool software:

   1. Run the NAS Management installer as an administrator.

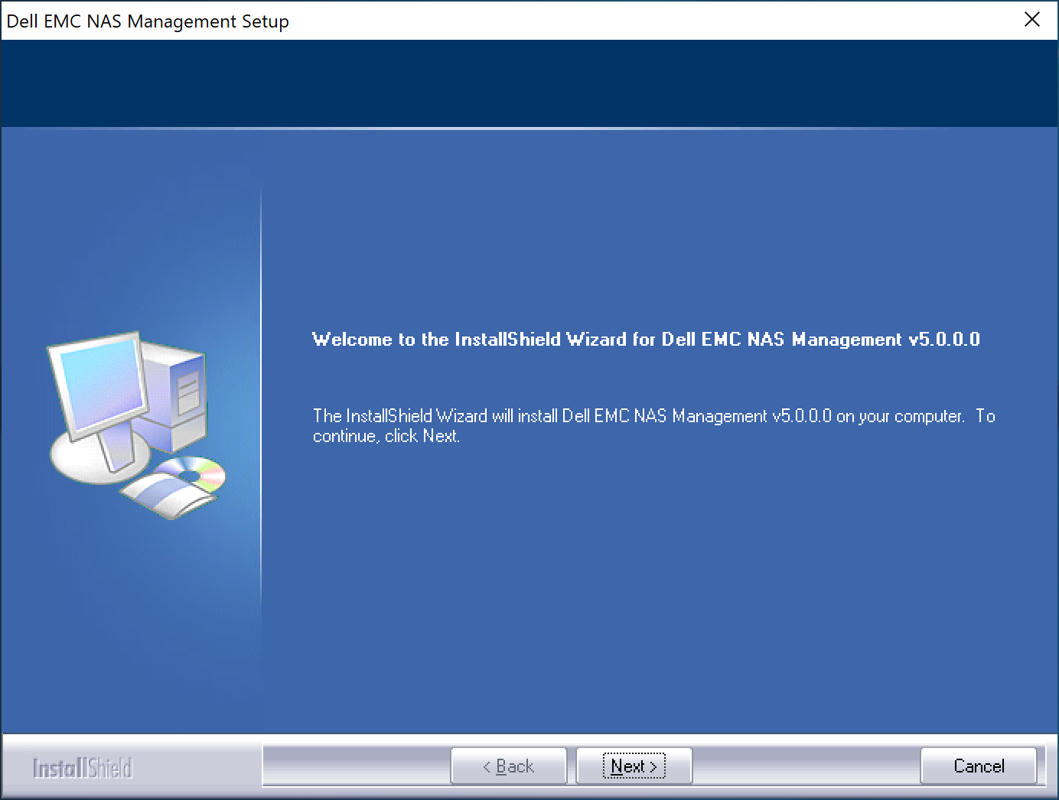

      The Dell NAS Management Setup wizard appears.

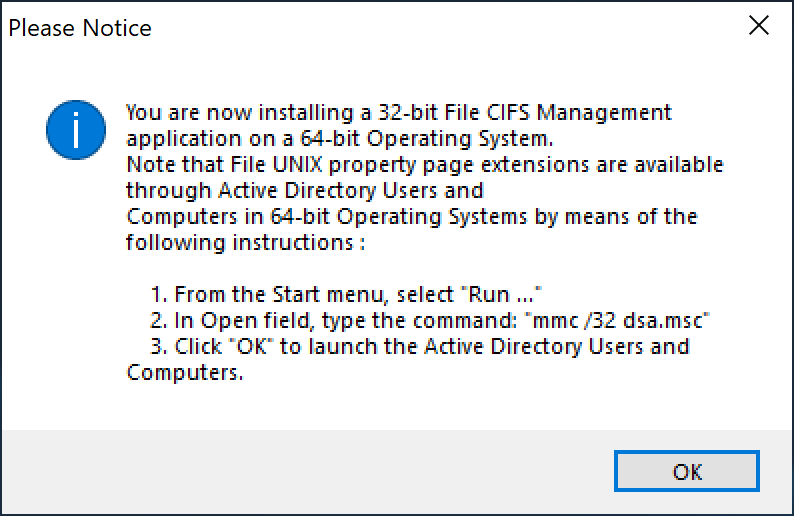

   2. Take the defaults through the wizard until you see a notice about installing the 32-bit version.



   3. Click OK.

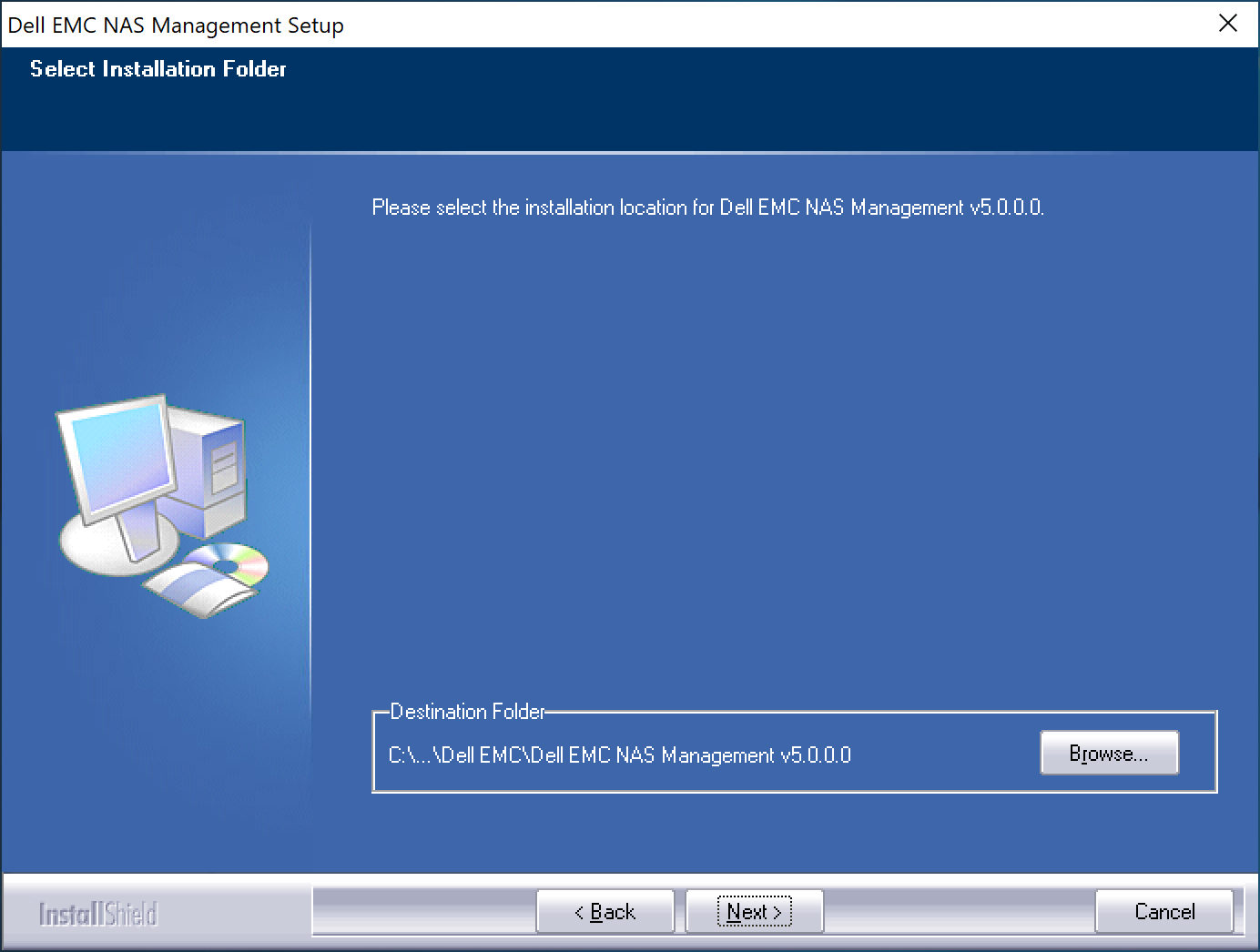

      The Select Installation Folder page appears.



   4. Click Next to accept the default location.

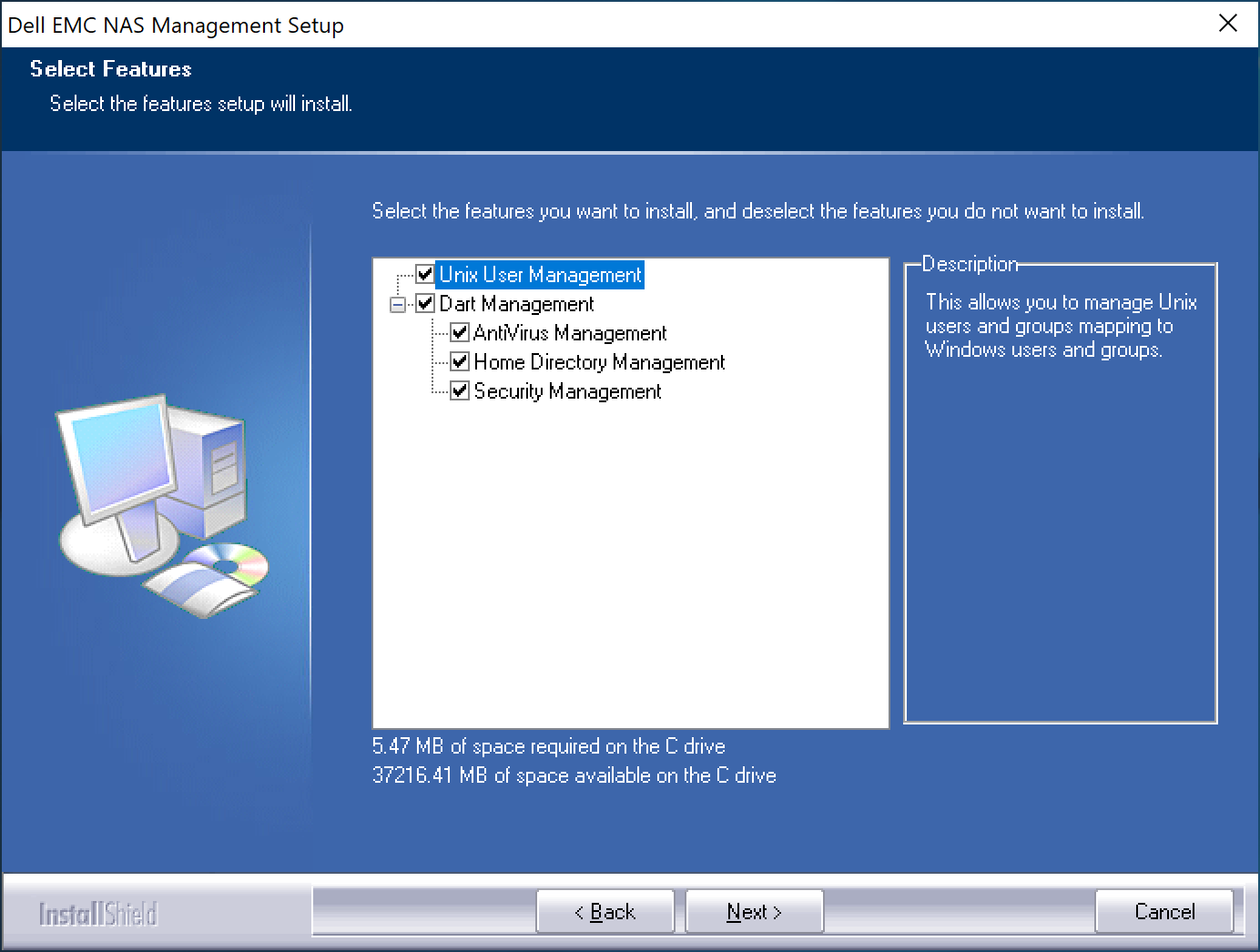

      The Select Features page appears.



   5. Click Next to install all the features then Next again to start the installation.
      Click Finished when the installation has completed.

4. Open the Dell NAS Management console.

   1. In the start menu, search for and open Administrative Tools.

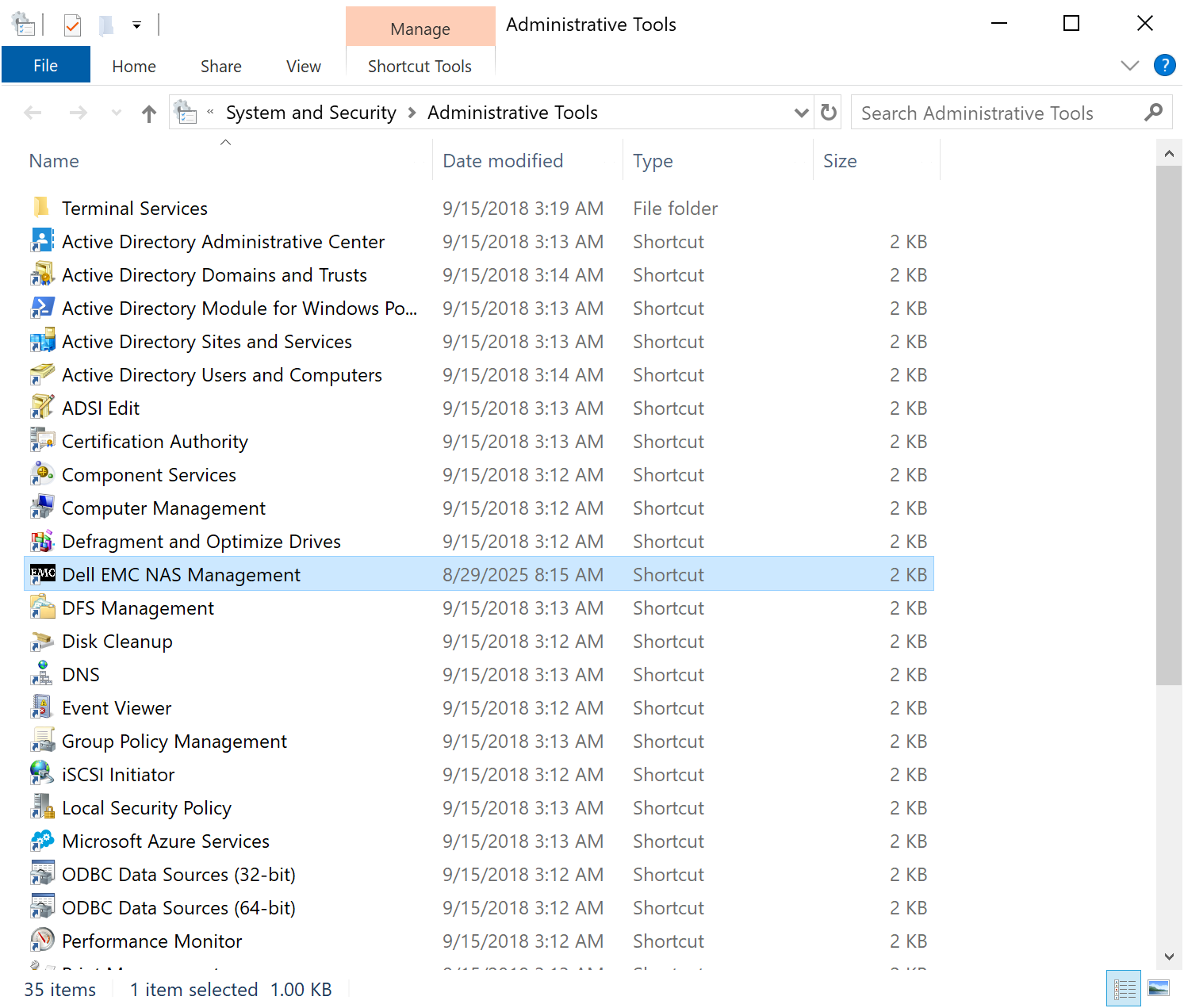

   2. Open Dell EMC NAS Management as an administrator.

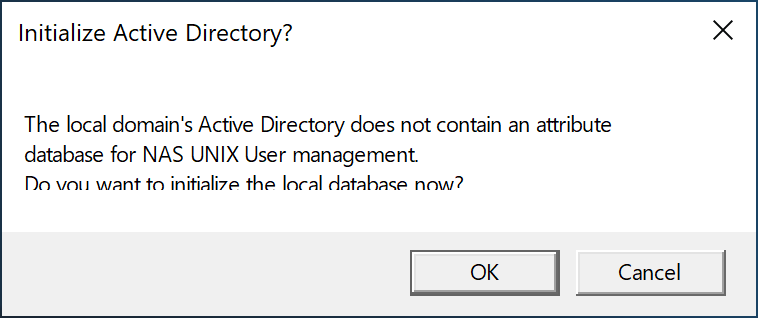

   3. If the Initialize Active Directory? dialog appears, click OK.



5. Connect to the appropriate NAS Server:

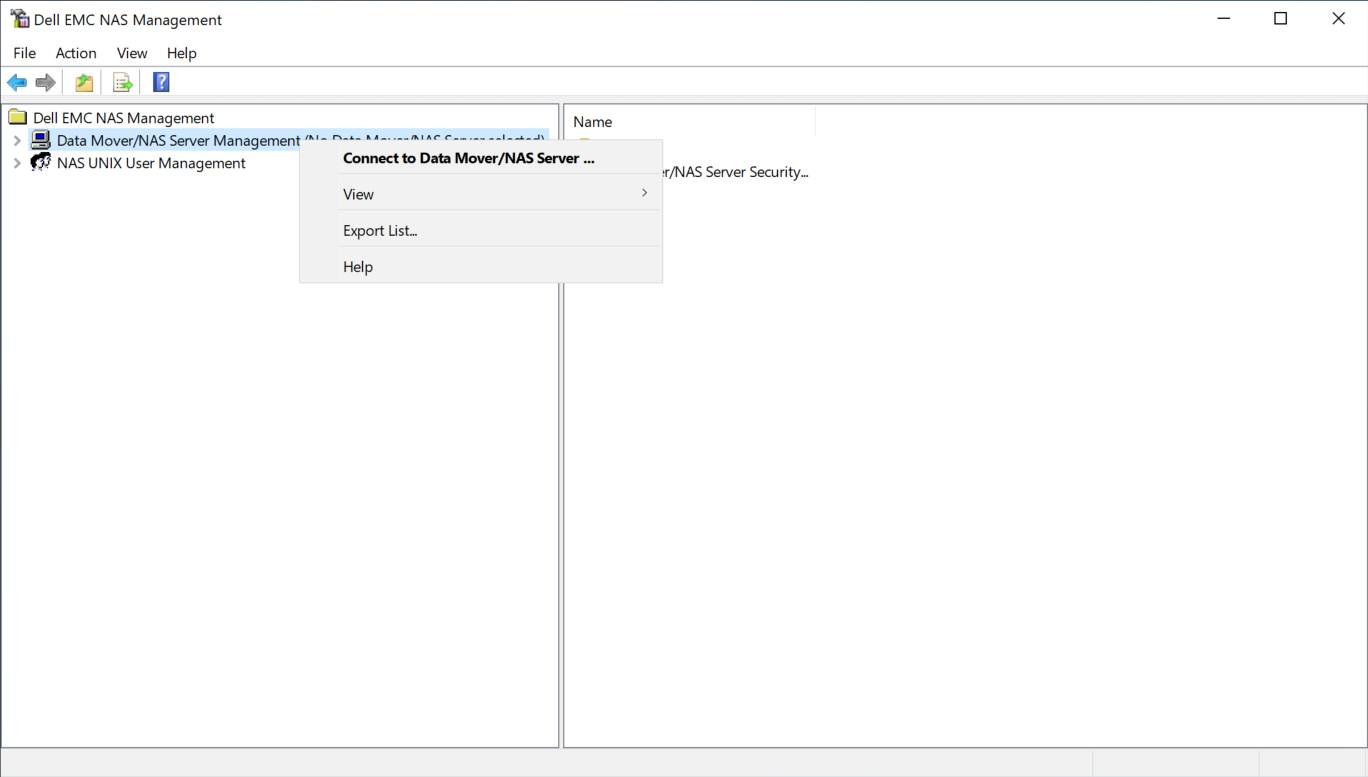

   1. In the navigation pane, right-click the Data Mover/NAS Server Management folder, and then select Connect to Data Mover/NAS Server… from the shortcut menu.

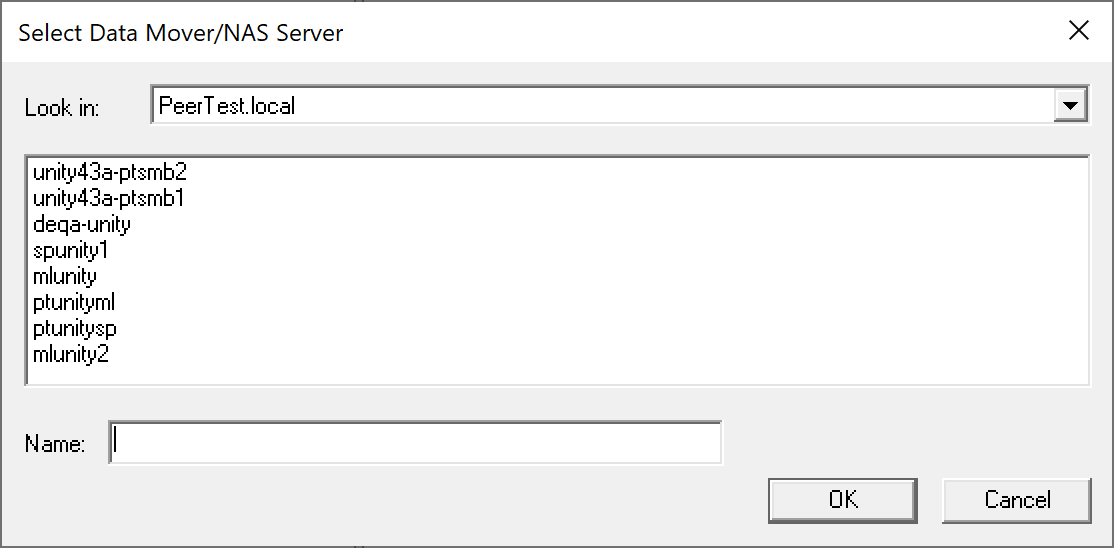

   2. In the Select Data Mover/NAS Server dialog that appears, select the appropriate Unity or PowerStore NAS Server, and then click OK.



6. Add the Peer Agent service account or SMB Access account (if using multi-protocol) to the EMC Event Notification Bypass and EMC Virus Checking security policies:

   1. Navigate to the Data Mover/NAS Server Management > Data Mover/NAS Server Security Settings >User Rights Assignment folder.

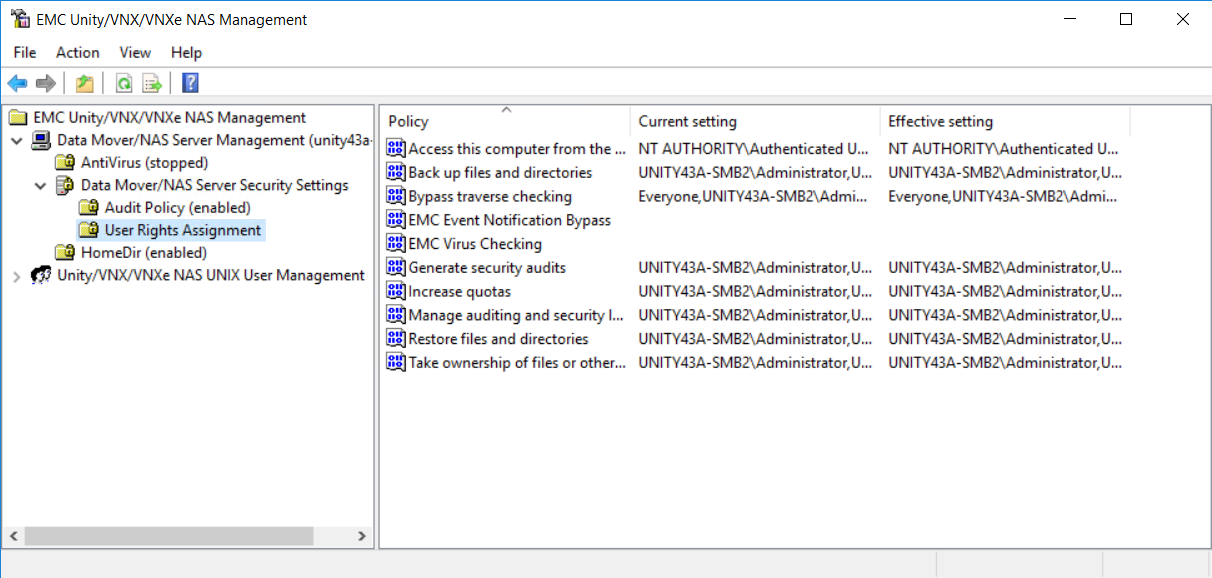

      The list of user rights assignment settings appears in the details pane and includes their current setting and effective setting.

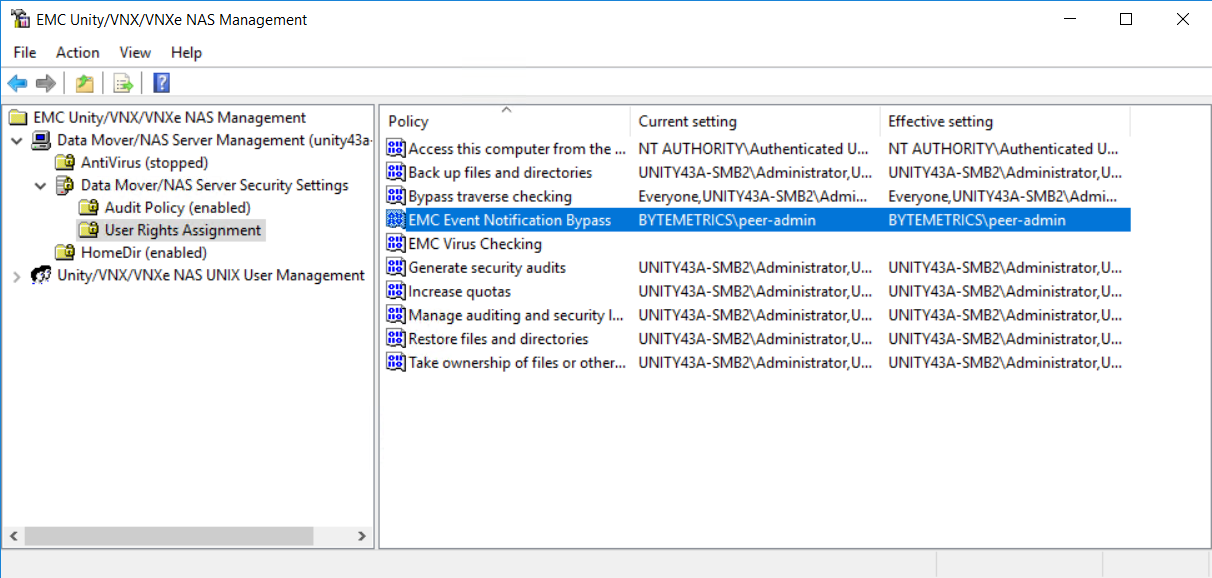

   2. In the details pane, right-click the EMC Event Notification Bypass policy, and then select Security from the shortcut menu.

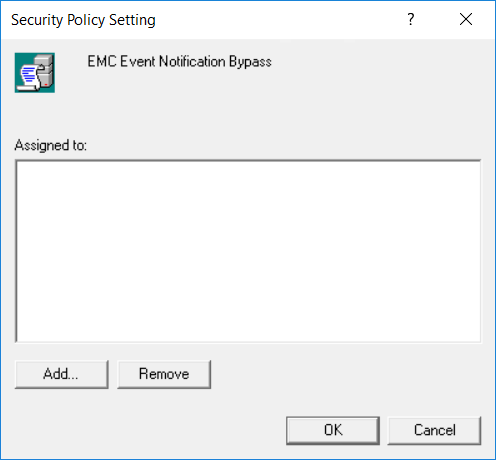

      The Security Policy Setting dialog appears and lists users or groups that are already assigned to the selected user rights assignment. If no assignments exist, the list is blank.




   3. Click Add.
      The Select User or Groups dialog appears.

   4. In the Look in box, select the domain in which the Agent service or SMB Access account is located.

   5. In the upper pane, select the Peer Agent service or SMB access account, and then click Add.
      The account appears in the lower pane.

   6. Click OK.
      The account is now listed in the Security Policy Setting dialog.

   7. Click OK.
      The account is now assigned to the EMC Event Notification Bypass policy.




   8. Repeat Steps 6b-g for for each of the following policies:

      1. EMC Virus Checking

      2. Back up files and directories

      3. Restore files and directories

      4. Take ownership of files or other objects

      5. Manage auditing and security log

7. Restart the EMC CAVA and EMC CEPA services on your CEE server.
   Note: Once these settings are in place, no testing should be performed with this service account.

Troubleshooting

Windows: Error 1053 When Starting CAVA Service

If you get Error 1053 when you try to start the EMC CAVA service, ensure that the .NET 4.8 Framework is installed on the CEE server, and then restart the EMC CAVA service on the CEE server.

Windows: EMC CAVA and/or CEPA Services are Constantly Restarting

Check that the latest Microsoft Visual C++ runtime is installed. The installer can be obtained from https://aka.ms/vs/17/release/vc_redist.x64.exe. Restart the EMC CAVA and CEPA services after installation.

Windows or RHEL: CEE is not receiving events from storage device

A number of issues can result in this behavior. Be sure to check the following items:

1. Make sure the CEE server is configured for HTTP.

   1. To enable HTTP on Windows CEE servers:

      1. RDP into the CEE server and open regedit.exe.

      2. Navigate to HKLM\SOFTWARE\EMC\CEE\CEPP\Configuration\Security\Http

      3. Make sure that ServerEnabled is set to 1.

      4. Restart the EMC CEPA service after making this change.

   2. To enable HTTP on RHEL CEE servers:

      1. SSH into the CEE server.

      2. Navigate to the install directory for the CEE (typically /opt/CEEPack).

      3. Open emc_cee_config.xml using your preferred editor.

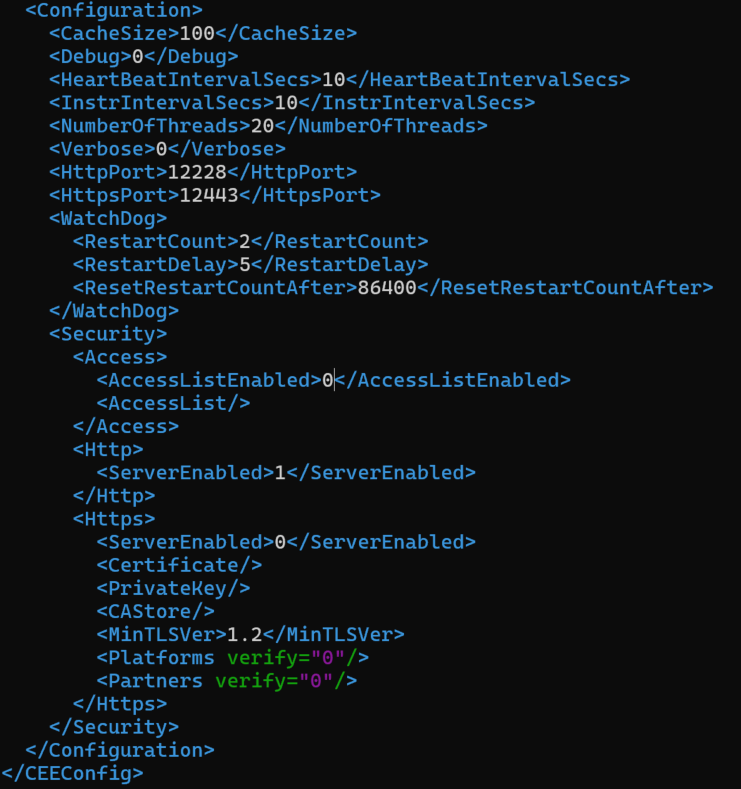

      4. Navigate to the bottom of the xml file, find the Configuration/Security section and set Http/ServerEnabled to 1

      5. Save and close the xml file

      6. Restart the CEE service

         CODE

         sudo systemctl restart emc_cee

2. Ensure that AccessList is disabled. If AccessList support is a requirement for your environment, refer to the Dell documentation on how to configure the IP address(es) of the storage devices that will communicate with CEE.

   1. To turn off AccessList on Windows CEE servers:

      1. RDP into the CEE server and open regedit.exe

      2. Navigate to HKLM\SOFTWARE\EMC\CEE\CEPP\Configuration\Security\Access

      3. Make sure that AccessListEnabled is set to 0

      4. Restart the EMC CEPA service after making this change.

   2. To turn off AccessList on RHEL CEE servers:

      1. SSH into the CEE server.

      2. Navigate to the install directory for the CEE (typically /opt/CEEPack).

      3. Open emc_cee_config.xml using your preferred editor.

      4. Navigate to the bottom of the xml file, find the Configuration/Security section and set Access/AccessListEnabled to 0

      5. Save and close the xml file

      6. Restart the CEE service

         CODE

         sudo systemctl restart emc_cee

3. Make sure the CEE server has no firewalls enabled. If firewalls are a must, make sure that inbound port 12228 (by default) is open. Refer to Dell documentation if you need to change this port as it needs to be changed on the CEE server as well as on the storage device.
